Isolate, amplify, filter and convert: WAGO’s signal conditioners and WAGO's isolation amplifiers handle a large number of functions in various application areas and provide secure and error-free signal transmission – thanks to a comprehensive range of approvals for worldwide applications. The focus is on usability and absolute reliability.

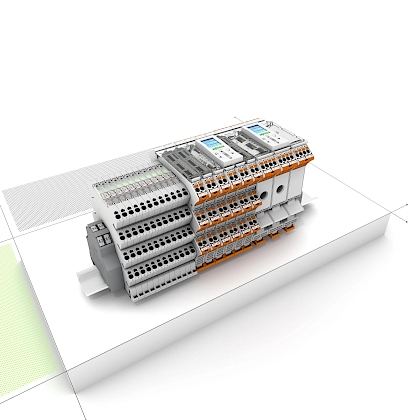

WAGO’s signal conditioners and isolation amplifiers keep a uniform profile within cabinets. This allows easy commoning of the supply voltage, eliminating the need for time-consuming wiring of individual components.

Your Benefits:

  • Calibrated switching between measurement ranges to always ensure equal precision
  • Input/output response simulation (2857 Series)
  • Can be used under extreme environmental conditions (−40 … +70°C)
  • Safe isolation per DIN EN 61010-1
  • Intuitive configuration via software, app, display, DIP or push/slide switch

Various Combination Options

At a glance

Various functions for a wide range of applications:

  • Isolation Amplifiers
  • Frequency Signal Conditioners
  • Temperature Signal Conditioners
  • Threshold Value Switches
  • Potentiometer Signal Conditioners
  • Current, Voltage and Power Signal Conditioners
  • 3-Phase Power Measurement Modules

Discover Our Range of Signal Conditioners and Isolation Amplifiers

Isolation Amplifiers

Isolate, amplify, filter or convert: WAGO’s isolation amplifiers handle a large number of functions in industrial applications and provide secure and error-free signal transmission.

The range of isolation amplifiers provides the right solution for every application:

  • With a power supply: isolation amplifiers (permanently configured), isolation amplifiers (configurable), universal isolation amplifiers, bipolar isolation amplifiers, repeater power supplies, signal splitters
  • Without a power supply: passive isolators, loop-powered isolators

Your benefits with WAGO's isolation amplifiers:

  • Galvanic isolation between input/output/power supply
  • Zero and span adjustment to compensate for error or signal shifts
  • Switchable filter function to prevent signal interference
  • Reliable protection of the input circuit against overcurrent (857-409, 857-402, 2857-401)
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).

Frequency Signal Conditioners

WAGO’s frequency signal conditioners record 0.1 kHz to 120 kHz signals from NAMUR, NPN or PNP sensors and convert the frequency into an analog standard signal.

Your benefits with WAGO's frequency signal conditioners:

  • Signal acquisition from NAMUR, NPN or PNP sensors
  • Frequency range: 0.1 … 120 kHz
  • Fault signaling: Wire break/short-circuit detection for NAMUR proximity sensors
  • Signaling measurement range underflow/overflow

Temperature Signal Conditioners

With WAGO’s temperature signal conditioners, signals from Pt, TC, Ni, KTY and RTD sensors and resistors can be recorded and converted into an analog standard signal on the output side. Whether a resistive temperature device or a thermocouple is used depends on factors such as the maximum temperature range, the installation’s environment and the required measurement accuracy:

  • Resistive temperature device (RTD): Temperature range up to 850°C, high accuracy
  • Thermocouple (TC): Temperature range up to 2320°C, better response time

The benefits of our temperature signal conditioners for you:

  • Signal acquisition of Pt, TC, Ni, KTY and RTD sensors and resistors up to 4.5 kΩ (e.g., Pt100 sensors)
  • 2-, 3- and 4-wire connection technology
  • Fault signaling: Wire break/short-circuit detection of the sensor
  • Signaling measurement range underflow/overflow

Threshold Value Switches

WAGO’s threshold value switches monitor various measurement signals such as temperature, current or voltage. If a value falls above or below a limiting value setting, emergency stops or alarms can be triggered, for example. In addition to threshold value switches for analog signals, WAGO also offers RTD threshold value switches for resistance temperature sensors and potentiometers, as well as TC threshold value switches for thermocouples, allowing both signal monitoring and measurement.

Your benefits with WAGO's threshold value switches:

  • Input/output response simulation (2857 Series)
  • Relays as threshold value switches (e.g., activation/deactivation delay)
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).

Potentiometer Signal Conditioners

WAGO’s potentiometer signal conditioner records resistance signals (e.g., from potentiometers) and converts them into a standard analog signal.

Your benefits with WAGO's potentiometer signal conditioners:

  • Signal acquisition from potentiometers and resistors
  • Automatic potentiometer identification
  • Configurable input and output parameters
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).

Current, Voltage and Power Signal Conditioners

Besides current and voltage signal conditioners which record DC and AC currents and voltages, this impressive range also includes a power measurement module that can measure current and voltage in parallel, convert them to power and output them as an analog standard signal. Additionally, WAGO’s signal conditioner for Rogowski coils offers a solution for retrofitting existing systems. Thus it is not necessary to disconnect the live conductor. Das 3-Phasen-Leistungsmessmodul ermöglicht die Messung relevanter Parameter, wie Spannung, Strom, Leistung und Oberwellen im dreiphasigen Versorgungsnetz, direkt im Schaltschrank.

The benefits of our current, voltage and power signal conditioners for you:

  • Signal acquisition of DC and AC voltages up to 300 VAC/VDC using modules that are just 6 mm wide
  • AC currents up to 4000 A via Rogowski coil
  • Switchable filter function to prevent signal interference
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).

3-фазные модули измерения мощности

With the WAGO three-phase power measurement module in a DIN-rail-mount enclosure, WAGO offers the ideal solution – remotely from the control level – to measure currents and voltages in a three-phase supply network. Measured variables such as active/apparent/reactive power, energy consumption, power factor, phase angle and frequency can be accessed via Modbus® interface. Two integrated RJ-45 sockets streamline the interconnection of up to 32 devices.

Your Benefits:

  • Measurement via current transformers or Rogowski coils › Flexible selection of upcoming measurement tasks
  • Slot for microSD cards: Fast and secure mobile measurement, including recording
  • Compact device in DIN-rail-mount enclosure: Saves space used for building technology
  • Modbus®-Schnittstelle (RS-485): Bereitstellung der ermittelten Werte über Modbus®
  • Digital signal output as pulse output (pulses/KWh are configurable) › Permanent energy consumption monitoring
Isolation Amplifiers

Isolation Amplifiers

Isolate, amplify, filter or convert: WAGO’s isolation amplifiers handle a large number of functions in industrial applications and provide secure and error-free signal transmission.

The range of isolation amplifiers provides the right solution for every application:

  • With a power supply: isolation amplifiers (permanently configured), isolation amplifiers (configurable), universal isolation amplifiers, bipolar isolation amplifiers, repeater power supplies, signal splitters
  • Without a power supply: passive isolators, loop-powered isolators

Your benefits with WAGO's isolation amplifiers:

  • Galvanic isolation between input/output/power supply
  • Zero and span adjustment to compensate for error or signal shifts
  • Switchable filter function to prevent signal interference
  • Reliable protection of the input circuit against overcurrent (857-409, 857-402, 2857-401)
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).
Frequency Signal Conditioners

Frequency Signal Conditioners

WAGO’s frequency signal conditioners record 0.1 kHz to 120 kHz signals from NAMUR, NPN or PNP sensors and convert the frequency into an analog standard signal.

Your benefits with WAGO's frequency signal conditioners:

  • Signal acquisition from NAMUR, NPN or PNP sensors
  • Frequency range: 0.1 … 120 kHz
  • Fault signaling: Wire break/short-circuit detection for NAMUR proximity sensors
  • Signaling measurement range underflow/overflow
Temperature Signal Conditioners

Temperature Signal Conditioners

With WAGO’s temperature signal conditioners, signals from Pt, TC, Ni, KTY and RTD sensors and resistors can be recorded and converted into an analog standard signal on the output side. Whether a resistive temperature device or a thermocouple is used depends on factors such as the maximum temperature range, the installation’s environment and the required measurement accuracy:

  • Resistive temperature device (RTD): Temperature range up to 850°C, high accuracy
  • Thermocouple (TC): Temperature range up to 2320°C, better response time

The benefits of our temperature signal conditioners for you:

  • Signal acquisition of Pt, TC, Ni, KTY and RTD sensors and resistors up to 4.5 kΩ (e.g., Pt100 sensors)
  • 2-, 3- and 4-wire connection technology
  • Fault signaling: Wire break/short-circuit detection of the sensor
  • Signaling measurement range underflow/overflow
Threshold Value Switches

Threshold Value Switches

WAGO’s threshold value switches monitor various measurement signals such as temperature, current or voltage. If a value falls above or below a limiting value setting, emergency stops or alarms can be triggered, for example. In addition to threshold value switches for analog signals, WAGO also offers RTD threshold value switches for resistance temperature sensors and potentiometers, as well as TC threshold value switches for thermocouples, allowing both signal monitoring and measurement.

Your benefits with WAGO's threshold value switches:

  • Input/output response simulation (2857 Series)
  • Relays as threshold value switches (e.g., activation/deactivation delay)
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).
Potentiometer Signal Conditioners

Potentiometer Signal Conditioners

WAGO’s potentiometer signal conditioner records resistance signals (e.g., from potentiometers) and converts them into a standard analog signal.

Your benefits with WAGO's potentiometer signal conditioners:

  • Signal acquisition from potentiometers and resistors
  • Automatic potentiometer identification
  • Configurable input and output parameters
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).
Current, Voltage and Power Measurement Modules

Current, Voltage and Power Measurement Modules

Besides current and voltage signal conditioners which record DC and AC currents and voltages, this impressive range also includes a power measurement module that can measure current and voltage in parallel, convert them to power and output them as an analog standard signal. Additionally, WAGO’s signal conditioner for Rogowski coils offers a solution for retrofitting existing systems. Thus it is not necessary to disconnect the live conductor. Das 3-Phasen-Leistungsmessmodul ermöglicht die Messung relevanter Parameter, wie Spannung, Strom, Leistung und Oberwellen im dreiphasigen Versorgungsnetz, direkt im Schaltschrank.

The benefits of our current, voltage and power signal conditioners for you:

  • Signal acquisition of DC and AC voltages up to 300 VAC/VDC using modules that are just 6 mm wide
  • AC currents up to 4000 A via Rogowski coil
  • Switchable filter function to prevent signal interference
  • A digital signal output (DO) reacts to freely configurable measurement range limits (this allows use as a threshold value switch – with activation/deactivation delay).
3-Phase Power Measurement Modules

3-Phase Power Measurement Modules

With the WAGO three-phase power measurement module in a DIN-rail-mount enclosure, WAGO offers the ideal solution – remotely from the control level – to measure currents and voltages in a three-phase supply network. Measured variables such as active/apparent/reactive power, energy consumption, power factor, phase angle and frequency can be accessed via Modbus® interface. Two integrated RJ-45 sockets streamline the interconnection of up to 32 devices.

Your Benefits:

  • Measurement via current transformers or Rogowski coils › Flexible selection of upcoming measurement tasks
  • Slot for microSD cards: Fast and secure mobile measurement, including recording
  • Compact device in DIN-rail-mount enclosure: Saves space used for building technology
  • Modbus®-Schnittstelle (RS-485): Bereitstellung der ermittelten Werte über Modbus®
  • Digital signal output as pulse output (pulses/KWh are configurable) › Permanent energy consumption monitoring
