Current Transformers and Voltage Taps

Anywhere high currents are measured and processed, WAGO's current transformers are your first choice. Voltage taps also easily and safely tap the measurement voltage in existing systems.

Your benefits:

Safe, secure wiring with CAGE CLAMP® Connection Technology
Full range of products for new systems, as well as for retrofitting existing installations
Coordinated components for your energy data management

Our Products from the Current Transformer and Voltage Tap Range

Rogowski Coils

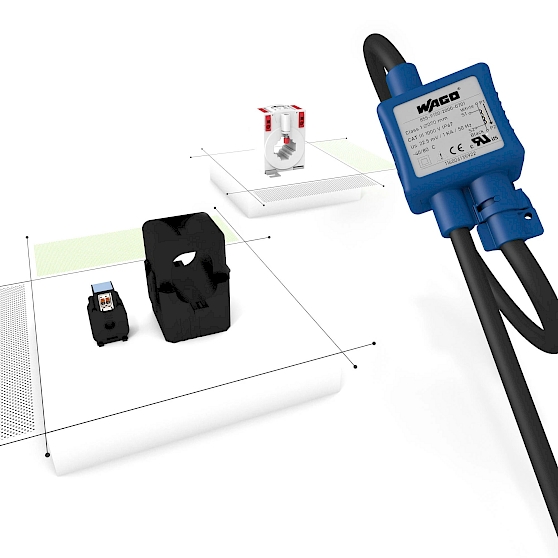

WAGO's 855 Series Rogowski Coils feature a closed-air coil with a non-magnetic split core and reliably convert AC currents.

Advantages:

Reduced footprint – ideal for measuring high currents via split core
Easy to use via bayonet lock and anchor points for cable ties
Higher security via sealable bayonet lock
Direct connection of Rogowski coils to the 3-phase power measurement module (750-495/000-002)
Ready for worldwide use in many industries, thanks to UL listing

Split-Core Current Transformers

Advantages:

Compact split-core current transformers – ideal for retrofitting existing systems
No current path interruption
Easy and cost-effective installation via cable ties
Transformer leg (855-5xxx) can be completely removed if space is tight

Voltage Taps for Insulated Conductors

WAGO’s 855 Series Voltage Taps easily and safely tap the measurement voltage in existing systems. Conductor contact is made via IDC connection for fast voltage tap-off.

The Benefits for You:

Safely tap the measurement voltage in no time
Tool-free insulation displacement connection (IDC) guarantees secure installation
2 A 5 x 25 mm fuse possible
For insulated conductors up to 16 mm2 (6 AWG)

Voltage Taps for Busbars

The Benefits for You:

Fast, easy installation on a live busbar with clamp mount or M6/M8 mounting
Various marking options for clear identification
Universal conductor termination via Push-in CAGE CLAMP® connection technology
Fused voltage path protects downstream measurement devices

Current and Voltage Tap

A combination of current transformer and voltage tap, the current and voltage tap can be quickly and easily mounted in the jumper slot of the 95 mm2 (4/0 AWG) high-current through terminal block (285-195).

The Benefits for You:

Power data can be directly tapped on the power supply
Integrated 250 A/1 A current transformer
Complies with accuracy class 0.5 per EN 61869-2 for exact measurement results
Fused voltage path protects downstream measurement devices
